DC-F30
| Model | holes | SPEC | FREE BODY | Flange PCD | TYPE |
|---|---|---|---|---|---|
| DC-F30 | 32H | M20*110W, DISC W/O THRU AXLE 2PCS BEARINGS Weight/g: 208g |
non | 58mm | Super boost MTB |

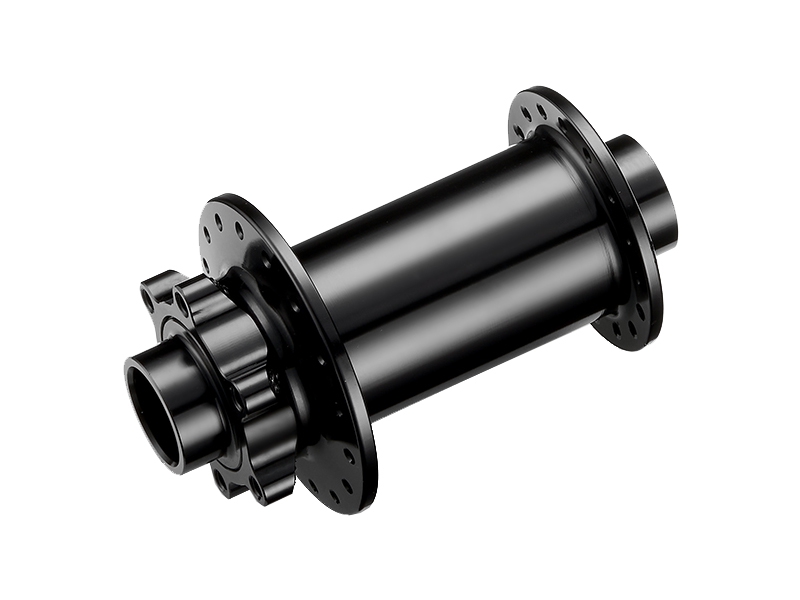

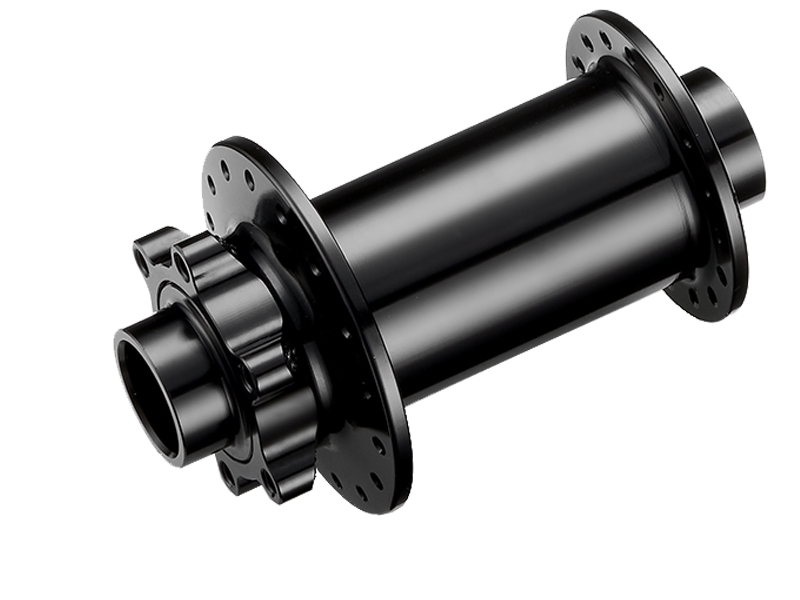

DC-F30 is a front hub listed by YU HUB for Super Boost MTB applications. The official product page specifies 32 spoke holes, M20 × 110W, DISC, two bearings, a 58/47 mm flange PCD, and a listed weight of 208 g. The free body is listed as non, and the thru axle is not included. DC-R59 is listed as the related rear hub. Because the page identifies the brake specification only as “DISC,” the exact rotor mounting interface should be confirmed from the supplied product or technical drawing before assembly.
|
Item |
Spec |
|
Product Type / Category |
Front hub / Super Boost MTB |
|
Spoke Holes |
32H |
|
Specification |
M20 × 110W, DISC |
|
Free Body / Bearings |
None / 2 pieces |
|
Flange PCD |
58mm |
|
Listed Weight |
208 g |
|
Thru Axle |
Not included |
Product Features & Benefits
- 32-hole front hub configuration.
- M20 × 110W specification for Super Boost MTB.
- DISC specification as listed on the official product page.
- Two-bearing configuration with no free body.
- 58 mm flange PCD and listed weight of 208 g.
Applications
- Super Boost MTB front wheel builds.
- 32H front wheels using an M20 × 110W hub specification.
- DISC front wheel builds after confirming the actual rotor mounting interface.
Installation Guide / Recommendations
- Confirm that the fork is compatible with the M20 × 110W specification.
- Prepare a compatible thru axle separately; it is not included.
- Confirm the actual rotor mounting interface before selecting the disc rotor, because the official page lists only “DISC.”
Related Products

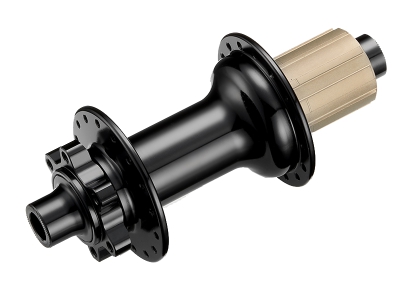

- DC-R59
