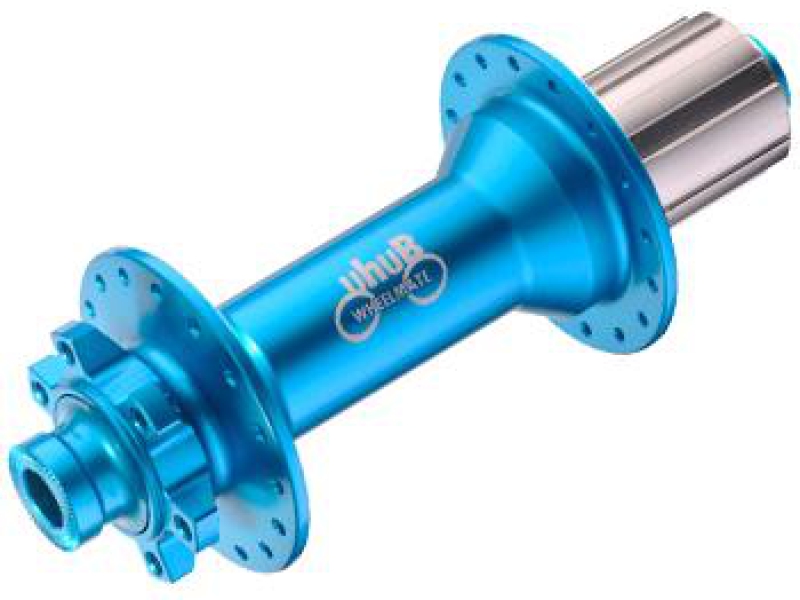

DC-R25
| Model | holes | SPEC | FREE BODY | Flange PCD | TYPE |
|---|---|---|---|---|---|
| DC-R25 | 32/36H | M10/12*170W, axle 7075, shimano 10s cassette Weight: 325g |
HG | 58mm | MTB(Fat bike) |
DC-R25 is a robust fat bike rear hub built for modern fat bike frames using 170mm OLD spacing and a 12mm thru axle. According to the supplied product data, its key specifications are 170mm OLD spacing, 12mm thru axle, Shimano HG 8-10 speed freehub compatibility, and 4 sealed cartridge bearings.
Designed for challenging riding conditions, DC-R25 is suitable for snow, sand, gravel, rugged trails, recreational riding, bikepacking adventures, and year-round fat biking. The 4 sealed cartridge bearings support long-lasting smooth performance, while the Shimano HG 8-10 speed compatibility makes the hub suitable for riders who need dependable drivetrain performance in fat bike applications.
DC-R25 is also suitable for mid-drive e-bike applications, where increased drivetrain torque requires a durable hub structure and reliable bearing support. Before installation, riders or mechanics should confirm frame spacing, axle dimensions, and cassette compatibility. This product page keeps all technical claims aligned with the supplied product data and does not add unprovided details such as weight, spoke hole count, flange dimensions, brake interface, or hub shell material.
Technical Specification
|
Item |
Spec |
|
Position |
Rear hub |
|
Application |
Fat bike |
|
Hub Spacing |
170mm OLD |
|
Axle System |
12mm thru axle |
|
Freehub |
Shimano HG 8-10 speed |
|
Bearings |
4 sealed cartridge bearings |
Product Features & Benefits
- Fat bike rear hub for 170mm OLD frame spacing.
- 12mm thru axle for modern fat bike rear frame setups.
- Shimano HG 8-10 speed freehub compatibility.
- 4 sealed cartridge bearings for durability and smooth performance.
- Suitable for snow, sand, gravel, rugged trails, recreational riding, and bikepacking.
- Suitable for mid-drive e-bike applications as provided in the source data.
Applications
- Fat bike rear wheel builds.
- Snow, sand, gravel, and rugged trail riding.
- Bikepacking adventures and year-round fat biking.
- Mid-drive e-bike applications requiring durable rear hub support.
- Frames compatible with 170x12mm thru axle spacing and Shimano HG 8-10 speed drivetrains.
Installation Guide / Recommendations
- Confirm the frame supports 170x12mm thru axle spacing before installation.
- Confirm cassette compatibility with Shimano HG 8-10 speed drivetrains.
- Verify axle dimensions before assembly.
- Periodic maintenance of the freehub body and bearings is recommended for demanding riding conditions.
- After installation, check drivetrain operation and smooth hub rotation.
