CL-R64
| Model | holes | SPEC | FREE BODY | Flange PCD | TYPE |
|---|---|---|---|---|---|
| CL-R64 | 28H | M12*142W, Center lock, 6 pawls, 72T W/O THRU AXLE 4PCS BEARINGS Weight/g: 248g |
HG | 45/58mm | GRAVEL |

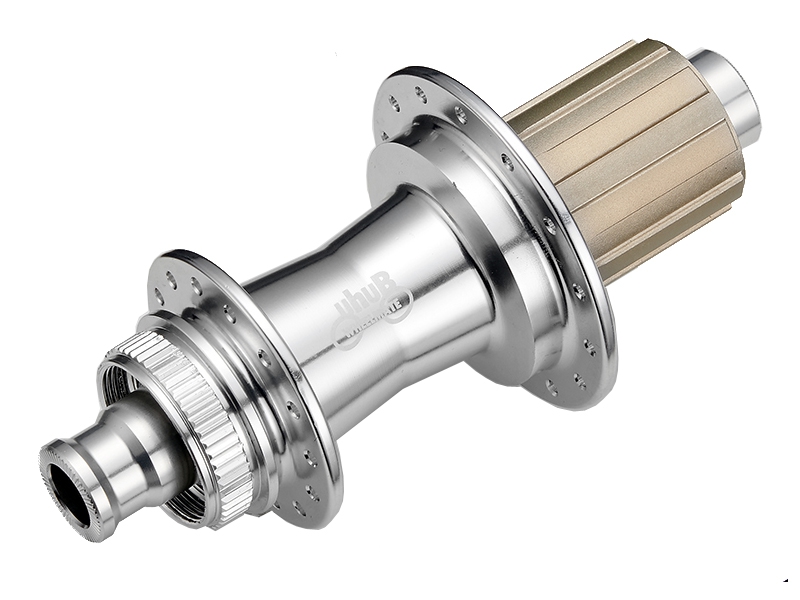

CL-R64 is a rear hub listed by YU HUB for Gravel applications. The official product page specifies 28 spoke holes, M12 × 142W, a Center Lock interface, six pawls, 72T, an HG free body, four bearings, a 45/58 mm flange PCD, and a listed weight of 248 g. The thru axle is not included. The official page lists CL-F37, RDC-R27, CL-R51, RDC-F27, XCL-F02, and XCL-R02 as related products.
|
Item |
Spec |
|
Product Type / Category |
Rear hub / Gravel |
|
Spoke Holes |
28H |
|
Specification |
M12 × 142W, Center Lock |
|
Engagement System |
6 pawls / 72T |
|
Free Body / Bearings |
HG / 4 pieces |
|
Flange PCD / Weight |
45/58 mm / 248 g |
|
Thru Axle |
Not included |
Product Features & Benefits
- 28-hole Gravel rear hub configuration.
- M12 × 142W specification with Center Lock interface.
- Six-pawl and 72T specification.
- HG free body with four bearings.
- 45/58 mm flange PCD and listed weight of 248 g.
Applications
- Gravel rear wheel builds.
- 28H rear wheels using an M12 × 142W hub specification.
- Center Lock disc-brake systems.
- Rear wheel systems requiring an HG free body.
Installation Guide / Recommendations
- Confirm that the frame is compatible with the M12 × 142W specification.
- Prepare a compatible thru axle separately; it is not included.
- Use compatible Center Lock and HG components based on the selected brake and drivetrain systems.
Related Products
- CL-F37

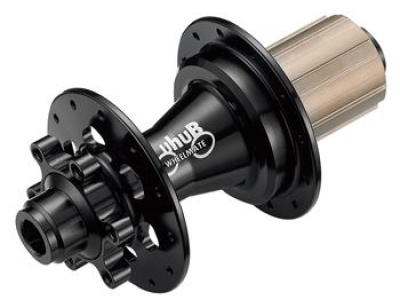

- RDC-R27

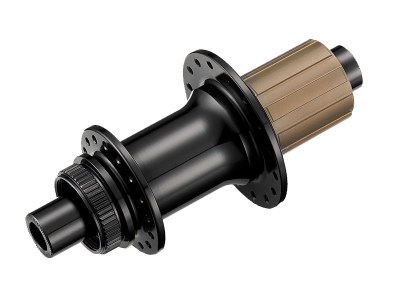

- CL-R51
