DC-R40
| Model | holes | SPEC | FREE BODY | Flange PCD | TYPE |
|---|---|---|---|---|---|
| DC-R40 | 32/36H | M12*148W,ALLOY axle, alloy Shimano Cassette, 54T ratchet, DC-R40X for SRAM XD free hub, Center lock for CL-R40 Weight/g: 300g |
HG | 58mm | BOOST MTB/E-BIKE |

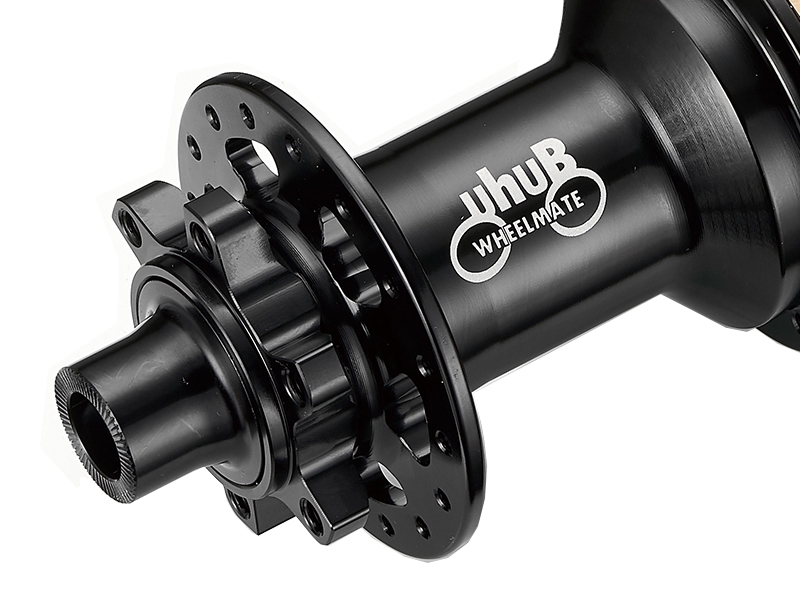

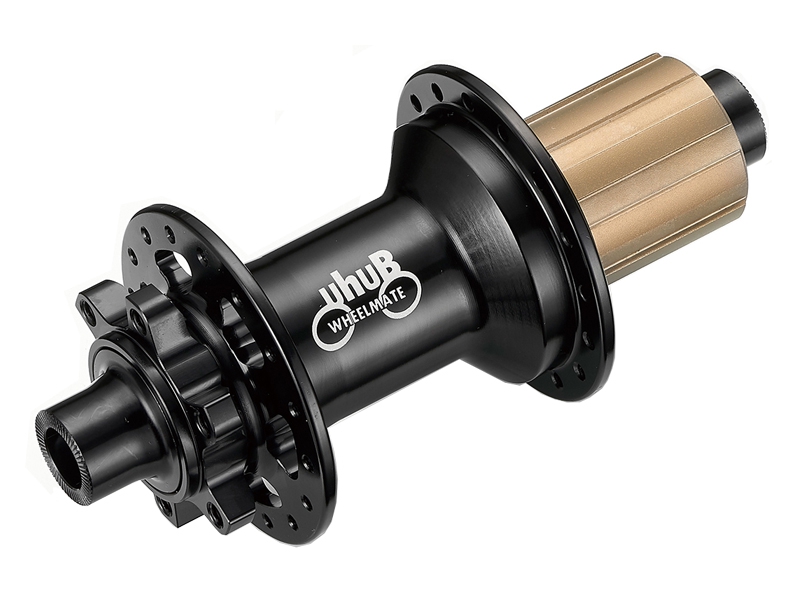

DC-R40 is specified as an MTB rear hub with a disc ISO 6 holes design and a Shimano HG 8-12 speed alloy HG cassette. This combination defines the disc rotor mounting interface (ISO 6 holes) and the drivetrain interface (Shimano HG 8-12 speed) as provided in the product information. For product managers and wheel builders, keeping these exact terms consistent across product pages, specification sheets, and purchase orders helps avoid confusion and ensures the correct hub standard is selected.
The installation guidance provided for DC-R40 describes it as a boost rear wheel hub and states that you will need a through axle with OD 12mm to lock into the frame. The OLD is provided as 148mm for hub total length. Therefore, this page lists 148mm OLD and through axle OD 12mm as the key assembly requirements to be checked against the bike frame specification. No additional claims about compatibility with other standards are added, because the objective is to keep technical information strictly aligned with what is supplied.
For the hub drive mechanism, the provided text specifies that the rear hub drive system is using 6 pawls and springs with a 54 tooth ratchet ring, which allows 108t engagements. These values and phrases are included in both the specification table and the description to support SEO for technical search queries while preserving the exact wording and numbers from the provided data.
In website implementation, DC-R40 can be supported by structured content elements such as a technical specification table, feature bullets, FAQ blocks, and internal links. All of these can improve SEO without changing the facts of the product. For example, the model code (DC-R40) and the key phrases (ISO 6 holes, Shimano HG 8-12 speed alloy HG cassette, 148mm OLD, through axle OD 12mm, 54 tooth ratchet ring, 108t engagements) can be used in headings and on-page keywords.
The provided related product recommendations can also be used for cross-linking: DC-R41 (micro splind 12 speed cassette design) and DC-R40S (steel axle and crmo Shimano HG cassette). These related links help users discover alternatives in the same product family while keeping the product information consistent. All specifications stated on this page are reproduced directly from the provided product info.
|
Item |
Spec (Provided) |
|
Position |
Rear (MTB) |
|
Disc Interface |
Disc ISO 6 holes design |
|
Cassette |
Shimano HG 8-12 speed alloy HG cassette (as provided) |
|
OLD (Hub Total Length) |
148mm |
|
Assembly Requirement |
Through axle OD 12mm to lock into the frame |
|
Drive System |
6 pawls and springs with 54 tooth ratchet ring; allows 108t engagements |
Product Features & Benefits
- MTB rear hub with disc ISO 6 holes design (as provided).
- Shimano HG 8-12 speed alloy HG cassette (as provided).
- Boost rear hub with 148mm OLD and through axle OD 12mm requirement (as provided).
- Drive system uses 6 pawls and springs with 54 tooth ratchet ring, allowing 108t engagements (as provided).
Applications
- MTB rear hub with disc ISO 6 holes design, with Shimano HG 8-12 speed alloy HG cassette.
Installation Guide / Recommendations
- To assemble this boost rear wheel hub into the bike, you will need through axle OD 12mm to lock into the frame.
- OLD is 148mm for hub in total length.
- This rear hub drive system is using 6 pawls and springs with 54 tooth ratchet ring, which allows 108t engagements.
Related Products
- DC-R41 with micro splind 12 speed cassette design.
- DC-R40S with steel axle and crmo Shimano HG cassette.
